DORA Metrics - CodeAnt AI

Overview

CodeAnt AI’s DORA Metrics feature provides comprehensive insights into your software delivery performance using the four key metrics established by the DevOps Research and Assessment (DORA) team. These metrics help you measure, benchmark, and improve your engineering team’s effectiveness and delivery capabilities. Metrics are automatically benchmarked against industry standards across four performance levels: Elite, High, Medium, and Low. Each repository tracks deployments in one of two modes:

Mode	What counts as a deployment	Best for
Merge-based (`PR_MERGE`, default)	A pull request merged into a production branch. A proxy - your CI/CD pipeline is not observed.	Teams that deploy on every merge (trunk-based continuous deployment).
Pipeline deployments (`PIPELINE`)	A successful run of your production pipeline stage / environment. Deployment Frequency, Change Failure Rate, and MTTR are computed from real CI/CD deployments.	Teams whose deploys are pipeline runs decoupled from merges - release branches, scheduled releases, redeploys, rollbacks.

See Pipeline Deployment Mode for setup.

Supported Providers

DORA Metrics are available for the following Git providers:

Provider	Cloud	Self-Hosted
GitHub	Yes	Yes
GitLab	Yes	Yes
Bitbucket	Yes	Yes (Data Center)
Azure DevOps	Yes	Yes

Team Control

Teams in DORA Metrics are collections of repositories grouped together for aggregated metrics tracking. A team allows you to view combined DORA metrics across all repositories within it, or drill down into individual repository performance while preserving team-level configuration.

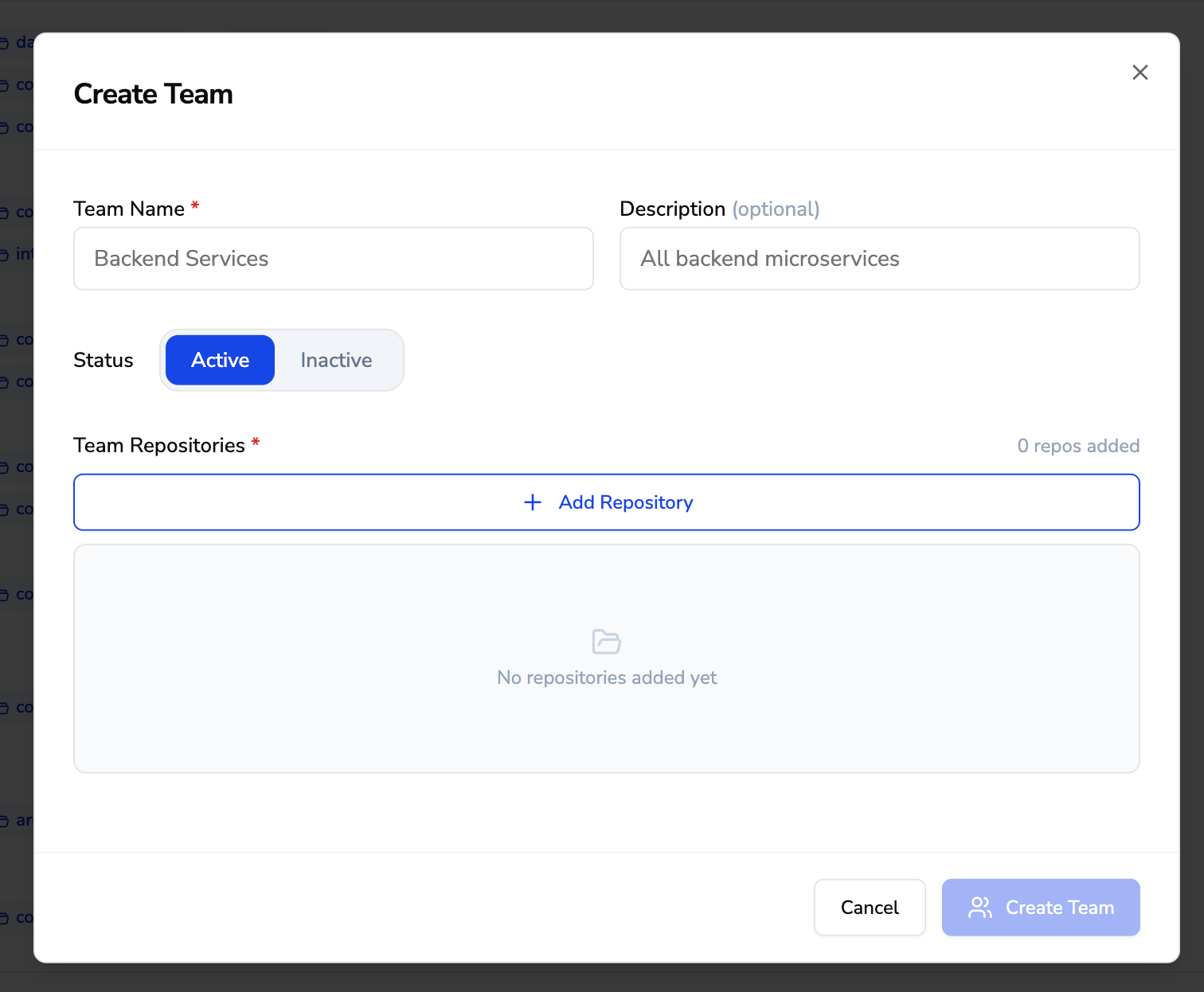

Creating a Team

Navigate to the DORA Metrics section and click Create Team to set up a new team.

When creating a team, you configure the following fields:

Field	Required	Description
Team Name	Yes	A descriptive name for the team (2-100 characters). Example: `Backend Services`, `Platform Team`.
Description	No	An optional description of the team’s purpose or scope.
Status	Yes	Set the team as Active or Inactive. Only active teams appear in the dashboard by default.
Team Repositories	Yes	List of repositories to include in the team. Click + Add Repository to add repos. Each added repository is configured with a Deployment Type and Prod Branch Patterns (see below).

Adding a Repository

When you add a repository to a team, you configure how deployments are tracked for that repo:

Add repository with prod branch patterns

Field	Default	Description
Repository	-	The repository to add (e.g., `intellij-experiments`).
Deployment Mode	`Merge-based`	Defines what counts as a deployment: Merge-based (a merged pull request into a production branch) or Pipeline deployments (a successful production pipeline stage / environment run). See Pipeline Deployment Mode.
Prod Branch Patterns	`^main$`	Regex patterns that identify your production branches. In merge-based mode, only PRs merged into matching branches count as deployments; in pipeline mode, only pipeline runs of matching branches count. You can add multiple patterns - for example, `^main$` and `^release/.$`. Click Add* to add each pattern.
Prod Stage / Environment Patterns	`(?i)prod`	(Pipeline mode only) Regex patterns matching the pipeline stages or environments that represent production - e.g. `(?i)prod` matches `production` and `exxat-prod`. Runs of non-matching stages (staging, QA) are ignored.
Pipeline IDs	(all)	(Pipeline mode, Azure DevOps only) Optional comma-separated pipeline definition IDs. When set, only those pipelines are considered.

A team can freely mix modes - some repositories merge-based, others pipeline-based. Each metric uses the right data source per repository, and the dashboard descriptions adapt to the selected scope.

Pipeline Deployment Mode

Switch a repository to Pipeline deployments when merges and deploys are not the same event - for example, a release branch that accumulates many PRs and then ships once from a pipeline. In this mode, Deployment Frequency, Change Failure Rate, and MTTR are computed from your actual CI/CD deployments instead of merged PRs.

Provider support and requirements

Provider	Deployment source	Requirements
Azure DevOps	Multi-stage YAML pipeline stages (Builds API + timeline)	The integration token must include the Build (Read) scope. If PR reviews work but no deployments appear, update the PAT embedded in your CodeAnt service-hook URLs to one that includes it.
GitHub	Deployments / environments (created automatically when an Actions job declares `environment:`, or by deploy tools calling the Deployments API)	Deploy workflow jobs must declare an `environment:` (e.g. `production`).
GitLab	Deployments / environments (created when a CI job declares `environment:`)	Deploy jobs must declare an `environment:`.
Bitbucket	Not yet supported	Pipeline mode is rejected for Bitbucket repositories; merge-based mode remains available.

Azure DevOps: the token must include the Build (Read) scope. CodeAnt reads pipeline runs through the Azure DevOps Builds API, which requires Build (Read) in addition to the Code scopes used for PR reviews. Tokens created only for code access will return 401 on the Builds API - the symptom is that PR reviews keep working normally while pipeline mode shows zero deployments.To fix it:

Create a Personal Access Token that includes Build (Read) alongside your existing Code scopes (or edit the existing PAT’s scopes).
Update the access_token parameter in your CodeAnt service-hook URLs (Azure DevOps Project Settings → Service Hooks) with the new token, on every project connected to CodeAnt.

Deployments start appearing on the next collection cycle - no other reconfiguration is needed.

Setup

(Azure DevOps) Verify the integration token includes the Build (Read) scope - see the warning above.
Open Team Controls, expand the repository, and switch Deployment Mode to Pipeline deployments.
Set Prod Branch Patterns to the branches your production pipeline deploys from (e.g. ^releases/.*$).
Set Prod Stage / Environment Patterns to match your production stage or environment names. The default (?i)prod covers any name containing “prod”; use ^production$ for an exact match.
(Azure DevOps, optional) Restrict to specific pipelines with Pipeline IDs.

Deployment data for team repositories is collected continuously regardless of mode, so switching a repository to pipeline mode shows its deployment history immediately. Stage and branch patterns are applied at read time - changing them takes effect on the next dashboard refresh, with no re-ingestion needed.

Azure DevOps notes: single-stage YAML pipelines report one implicit stage named __default - use __default (or .*) as the stage pattern for those. Historical coverage is limited by Azure DevOps build retention (about 30 days by default unless runs are retained); days already collected are kept by CodeAnt even after Azure DevOps purges the runs, so coverage accumulates forward from enablement.

Managing Teams

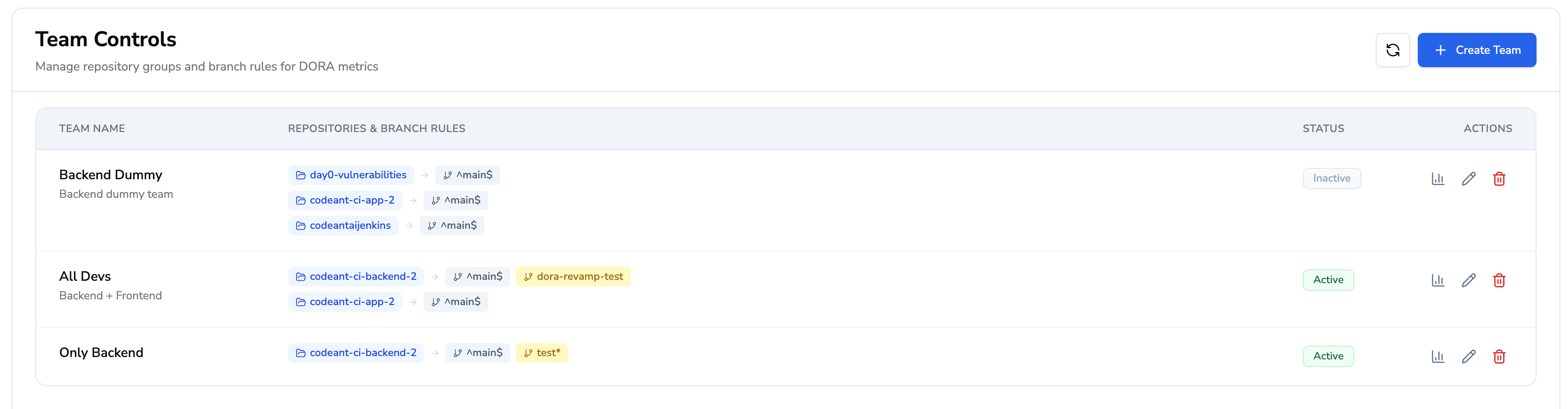

The Team Controls page lists all your teams with their repositories, branch rules, and status at a glance.

Each row shows:

Team Name and description
Repositories & Branch Rules - the repos in the team along with their configured production branch patterns
Status - Active or Inactive
Actions - View metrics, edit, or delete the team

From this page you can:

Add repositories to an existing team
Remove repositories from a team
Update repository config - change the production branches or deployment type for a specific repository within the team
Edit team details - update the team name, description, or active status
Delete a team - delete the team

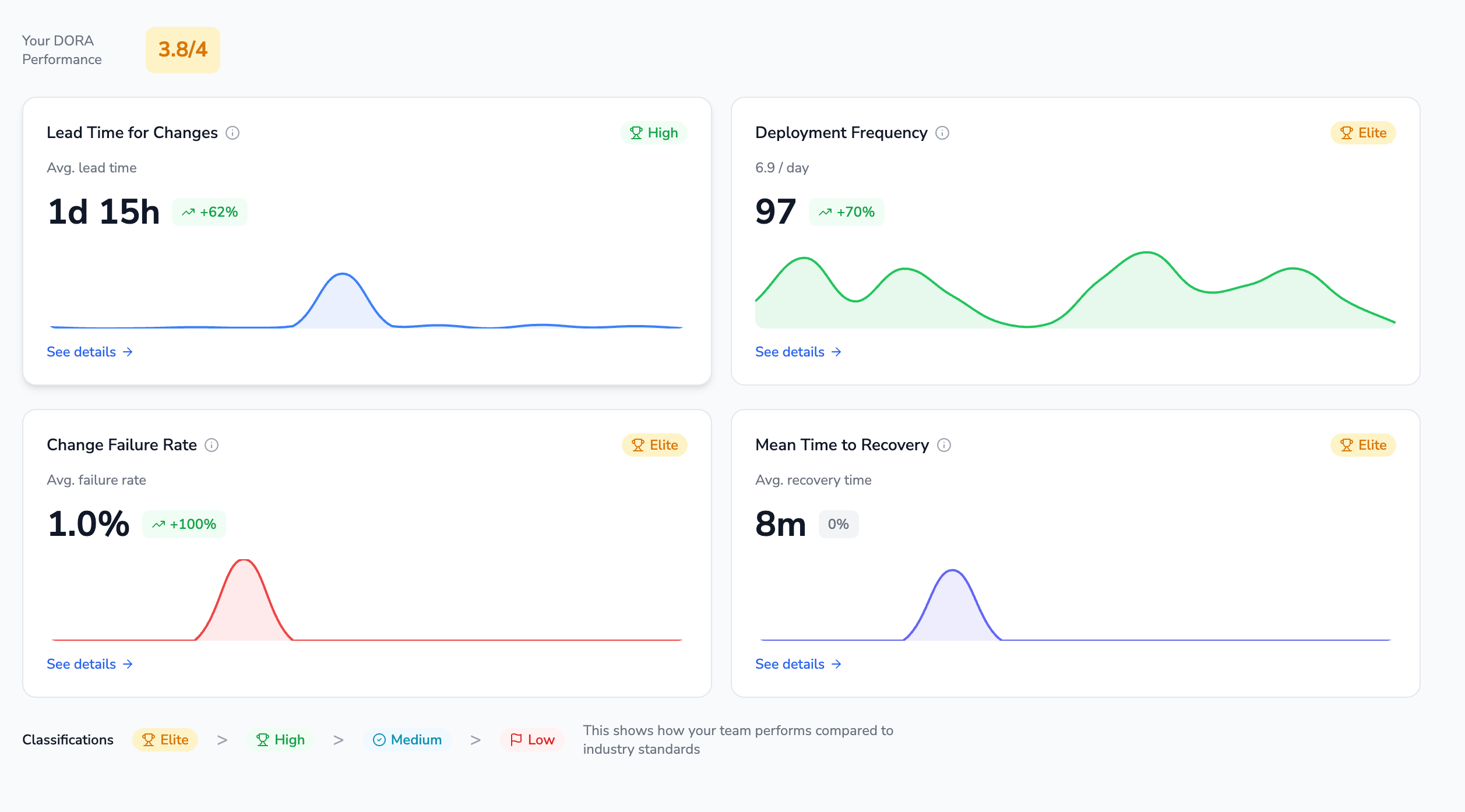

DORA Dashboard

CodeAnt AI computes all four standard DORA metrics. Each metric is rated against industry benchmarks and includes trend comparison against the previous period of equal length.

Composite DORA Score

The overall DORA score is the average of all four individual metric ratings, converted to a numeric scale:

Rating	Score
Elite	4
High	3
Medium	2
Low	1

The composite score is calculated by averaging the four scores and rounding to the nearest level. For example, if your metrics rate as Elite (4), High (3), Elite (4), and Medium (2), your composite score would be 3.25 - rated High. The dashboard displays your composite DORA score alongside all four metric cards, each with its rating, trend, and daily chart.

Deployment Frequency

What it measures: How often your team successfully deploys code to production. What counts as a deployment depends on the repository’s deployment mode:

Merge-based: a pull request merged into a production branch. Note this is a proxy - a release branch that takes many merges but ships once will over-count.
Pipeline: a successful run of a production pipeline stage / environment (matching the configured stage patterns) on a production branch. Re-deploys with no new merges count; merges that haven’t shipped yet don’t.

How it’s calculated:

Total deployments in the selected date range
Average deployments per day, per week, and per month

Performance Ratings:

Rating	Threshold
Elite	1 or more deployments per day
High	1 or more deployments per week
Medium	1 or more deployments per month
Low	Less than 1 deployment per month

Dashboard view:

Summary card showing total deployments, daily/weekly/monthly averages, and rating
Daily trend chart showing deployment count per day over the selected period
Trend comparison (up/down/flat) against the previous period

Lead Time for Changes

What it measures: The time from first commit to production deployment - DORA’s change lead time. Lead time tracks the full lifecycle of a change, starting from the first commit on the pull request branch:

Merge-based repositories: lead time ends when the PR is merged into a production branch (merge is the deployment event).
Pipeline repositories: lead time ends at the first successful production deployment that shipped the change, so the merge-to-deploy gap is included. Changes merged but not yet deployed count up to merge only.

How it’s calculated:

Average and median lead time across all merged PRs in the period

Performance Ratings:

Rating	Threshold
Elite	Less than 24 hours
High	Less than 1 week (168 hours)
Medium	Less than 30 days (720 hours)
Low	30 days or more

Lead Time Stages: Lead time is broken down into five stages, giving you visibility into where time is spent in your delivery pipeline:

Stage	Label in UI	Description
First Commit to Open	Commit → PR Open	Time between the earliest commit on the PR branch and the PR creation. Measures how long code sits before a PR is opened.
First Response Time	First Response	Time from the first commit to the first review comment or approval. Measures how quickly reviewers engage.
Rework Time	Rework Time	Time from the first review to the last approval. Captures the review iteration cycle - back-and-forth between reviewer feedback and author updates until final approval.
Merge Time	Merge Time	Time from the last approval to the PR being merged. Measures post-approval delay.
Merge to Deploy	Merge → Deploy	Time from PR merge to the first successful production deployment that shipped it. Measured for pipeline-mode repositories; shown as Not tracked for merge-based repositories (there is no deploy signal).

Each stage reports average and median values in both seconds and hours. Distribution Buckets: The lead time distribution shows how your PRs are spread across time buckets:

Less than 1 hour
1 hour to 24 hours
24 hours to 7 days
7 days to 30 days
More than 30 days

Dashboard view:

Summary card with average/median lead time and rating
Daily trend chart showing average lead time per day
Per-stage daily breakdown charts
Distribution histogram

For Bitbucket and Azure DevOps, detailed review data (first response time, rework time, merge time) is loaded on-demand. Click Load review details on a specific PR in the drill-down to fetch and cache this data.

Change Failure Rate

What it measures: The percentage of deployments that fail or require immediate intervention after deploying (rollback or hotfix), per DORA’s change fail rate. What counts as a failed change depends on the repository’s deployment mode:

Merge-based: a revert PR - a pull request that reverts a previously merged change (detected from revert PR titles).
Pipeline: a production deployment that needed intervention, for any of three reasons:
- the pipeline run failed,
- the deployment was rolled back (a later deployment re-deployed an earlier commit), or
- the deployment shipped a change that was later reverted. (If the revert ships in the same deployment, the bad change never went live and it is not counted.)

How it’s calculated:

(Failed changes / Total deployments) × 100
Pipeline repositories additionally report a Deployment Rework Rate: the share of deployments that were unplanned remediation - rollbacks and deploys that shipped reverts - per DORA’s instability guidance.

Performance Ratings:

Rating	Threshold
Elite	0–5%
High	5–10%
Medium	10–15%
Low	Greater than 15%

Dashboard view:

Summary card with CFR percentage, total and failed deployment counts, and rating
Daily trend chart showing number of failures per day
List of failed PRs with links to the original reverted PR

Mean Time to Restore (MTTR)

What it measures: How quickly your team recovers from a failed deployment, per DORA’s failed deployment recovery time. How incidents and recoveries are defined depends on the repository’s deployment mode:

Merge-based: an incident is a revert PR; recovery time runs from the original (failed) PR’s merge to the revert PR’s merge.
Pipeline: an incident is a bad production deployment - a failed run, a rolled-back deployment, or a deployment whose changes were later reverted. Recovery time runs until the deployment that restored service: the next successful run of that stage, the rollback landing, or the revert reaching production. This captures roll-forward fixes and infra rollbacks that never touch git.

How it’s calculated:

Average and median recovery time across all incidents in the period
Only resolved incidents (those with a measurable recovery time) contribute to the average; unresolved incidents still count toward the incident total

Performance Ratings:

Rating	Threshold
Elite	Less than 1 hour
High	Less than 24 hours
Medium	Less than 1 week (168 hours)
Low	1 week or more

Dashboard view:

Summary card with average/median MTTR and rating
Daily trend chart showing average recovery time per day
List of incidents with recovery time details

Drill-Down Charts

Each DORA metric provides a paginated drill-down view that lets you inspect individual pull requests and incidents. All drill-down tables support sorting and pagination.

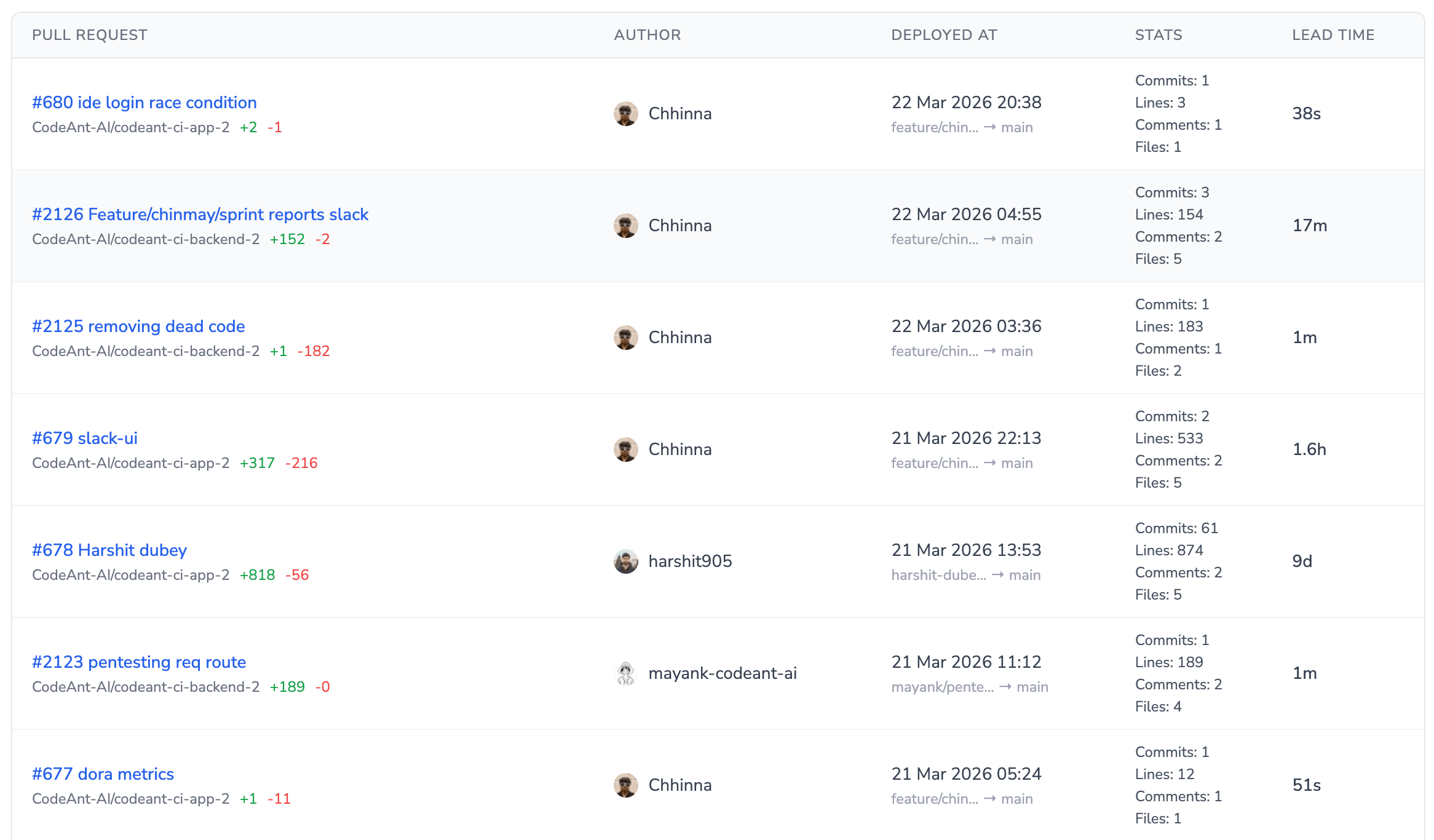

PR Drill-Down (Lead Time)

View every PR merged during the selected period with its full lead time breakdown. Columns displayed:

Column	Description
Repository	Repository name
PR	PR number and title
Author	PR author with avatar
Base Branch	Target branch the PR was merged into
Merged At	Date and time the PR was merged
Additions / Deletions	Lines of code added and removed
Files Changed	Number of files modified
Commits	Number of commits in the PR
Reviews	Number of reviews received
Lead Time	Total lead time with expandable stage breakdown
Is Revert	Whether this PR is a revert

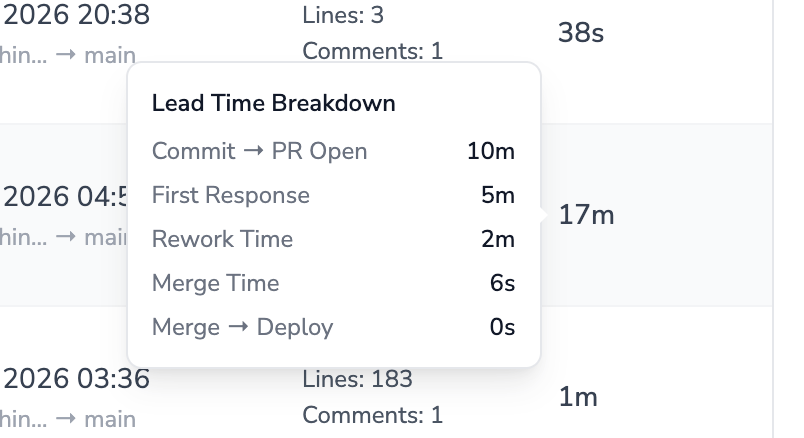

Hover over the lead time value on any PR to see the full stage breakdown:

Deployment Drill-Down

View all deployments in the period. Every row is a deployment: pipeline-mode repositories show their production stage runs, merge-based repositories show one “Merge deployment” row per merged PR. Columns displayed:

Column	Description
Deployment	For pipeline rows: the pipeline name, linked to the run (for GitHub, the Actions workflow name behind the deployment). For merge-based rows: “Merge deployment”. The repository and run number are shown beneath.
Deployed At	Deployment timestamp and the deployed branch
Stage	(Pipeline rows) The stage / environment name and how long the run took
Pull Requests	The PRs this deployment shipped, with links. Pipeline deployments carry every PR merged since the previous successful run of the same stage (matched exactly by merge-commit SHA where available); a deployment with no new merges (a re-deploy) shows none. Merge deployments show their own PR.

Failure Drill-Down

View all failed changes: revert PRs (merge-based repositories) and production deployments that needed intervention (pipeline repositories). Columns displayed:

Column	Description
Failed Change	For merge-based rows: the revert PR number and title. For pipeline rows: the pipeline / stage linked to the run, with the reason beneath - Failed run, Rolled back, or Shipped a reverted change
Author	Who created the revert (merge-based rows)
Failed At	When the failure occurred
Recovered By	The revert PR (merge-based rows) or the recovering deployment run, linked (pipeline rows)
Recovery Time	Time until the change was reverted / service was restored

Incident Drill-Down

View all production incidents with recovery time details. Incidents are revert PRs (merge-based repositories) or bad production deployments (pipeline repositories - failed runs, rollbacks, and later-reverted changes). Columns displayed:

Column	Description
Incident	For merge-based rows: the revert PR. For pipeline rows: the pipeline / stage linked to the run, with the incident reason beneath
Author	Who resolved the incident (merge-based rows)
Incident At	When the incident occurred
Recovered By	The revert PR or the recovering deployment run, linked
Recovery Time	Time to restore service (hours). Unresolved incidents show no recovery time and are excluded from the average

Filters

DORA Metrics support filtering at multiple levels to help you focus on the data that matters.

Team-Level Filters

Filter	Description
Team	Select a team to view aggregated metrics across all repositories in that team.
Date Range	Choose a start and end date for the analysis period. The previous period of the same length is automatically computed for trend comparison.

Repo-Level Filters

Filter	Description
Repository	When viewing a team, you can filter to a single repository within the team. This preserves the team’s production branch configuration for that repo.
Production Branches	When viewing a standalone repository (outside a team), you can specify custom production branch patterns to define what counts as a deployment.

Drill-Down Filters

All drill-down views support:

Filter	Description
Sort By	Choose the column to sort results by (e.g., `merged_at`, `lead_time`).
Sort Order	Ascending or descending order.
Pagination	Navigate through results with configurable page size (default: 25 items per page).

Trend Comparison

Every metric automatically includes a trend comparison against the previous period. If you select a 30-day window (e.g., Feb 1 – Mar 2), the previous period is the 30 days immediately before (Jan 2 – Jan 31). Trends show:

Direction: Up, down, or flat
Change percentage: How much the metric changed compared to the previous period
Previous value: The metric value from the prior period

This helps you quickly understand whether your team’s delivery performance is improving, declining, or holding steady.

How It Works

Connect Repositories: Link your Git repositories (GitHub, GitLab, Bitbucket, or Azure DevOps) to CodeAnt AI.
Create a Team: Group repositories that belong to a team or service area.
Configure Production Branches: Set regex patterns for each repository to define which branches represent production.
Choose a Deployment Mode: Keep the default merge-based mode, or switch repositories whose deploys are pipeline runs to Pipeline Deployment Mode and configure stage / environment patterns.
Automatic Data Collection: CodeAnt AI continuously collects and caches merged PR data and, for team repositories, CI/CD deployment records - no changes to your pipelines required.
View Metrics: Open the DORA Metrics dashboard, select your team and date range, and view all four metrics with ratings, trends, and drill-downs.
Drill Down: Click into any metric to see the individual PRs, deployments, failures, or incidents that contribute to that metric.
Track Improvement: Use trend comparison and historical data to track how your metrics evolve over time and benchmark against industry standards.

​Overview

​Supported Providers

​Team Control

​Creating a Team

​Adding a Repository

​Pipeline Deployment Mode

​Provider support and requirements

​Setup

​Managing Teams

​DORA Dashboard

​Composite DORA Score

​Deployment Frequency

​Lead Time for Changes

​Change Failure Rate

​Mean Time to Restore (MTTR)

​Drill-Down Charts

​PR Drill-Down (Lead Time)

​Deployment Drill-Down

​Failure Drill-Down

​Incident Drill-Down

​Filters

​Team-Level Filters

​Repo-Level Filters

​Drill-Down Filters

​Trend Comparison

​How It Works

Overview

Supported Providers

Team Control

Creating a Team

Adding a Repository

Pipeline Deployment Mode

Provider support and requirements

Setup

Managing Teams

DORA Dashboard

Composite DORA Score

Deployment Frequency

Lead Time for Changes

Change Failure Rate

Mean Time to Restore (MTTR)

Drill-Down Charts

PR Drill-Down (Lead Time)

Deployment Drill-Down

Failure Drill-Down

Incident Drill-Down

Filters

Team-Level Filters

Repo-Level Filters

Drill-Down Filters

Trend Comparison

How It Works
